Revolver filtri interferenziali

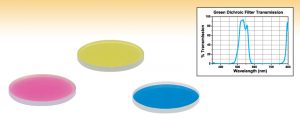

Set di filtri interferenziali (dicroici) montati su supporto a rotazione. Filtri passa-banda.

---

Manuali [file_manager_advanced login=”yes” roles=”all” path=”wp-content/uploads/nfs/Manualistica/Manuali Strumentazione/Filtro interferenziale” hide=”plugins” operations=”download” view=”list” theme=”windows10″ lang =”en”] [button color=”yellow” target=” _blank” url=”https://www.thorlabs.com”]Sito Produttore[/button]



---

Elenco Strumenti:

[abase db=1 sql = “SELECT * FROM `Strumento` WHERE `NomeStrumento` LIKE \’%Set filtri%\'” columns=”Nome Strumento^NomeStrumento,Laboratorio,Stato,Seriale,Inventario,Arrivo,Garanzia”]

Precauzioni e pericoli:

Note di sicurezza

Note: Tabella dati con i filtri del set

NUMERO FILTRO	COLORE	Banda
1 (FD1B)	BLUE	Transmission: >85% avg. for 390-480 nm <1% avg. for 540-750 nm Cut-off: 505 ± 15 nm
2 (FD1C)	CYAN	Transmission: >85% avg. for 390-530 nm <1% avg. for 585-710 nm Cut-off: 555 ± 15 nm
3 (FD1G)	GREEN	Transmission: >70% @ peak <1% avg. for 400-460 nm Low Edge: 505 ± 15 nm High Edge: 575 ± 15 nm
4 (FD1M)	MAGENTA	Transmission: >75% avg. for 395-440 nm and 645-750 nm <1% avg. for 500-590 nm
5 (FD1R)	RED	Transmission: >75% avg. for 615-730 nm <1% avg. for 380-550 nm Cut-on: 585 ± 15 nm
6 (FD1Y)	YELLOW	Transmission: >85% avg. for 550-750 nm <1% avg. for 410-475 nm Cut-on: 515 ± 15 nm
